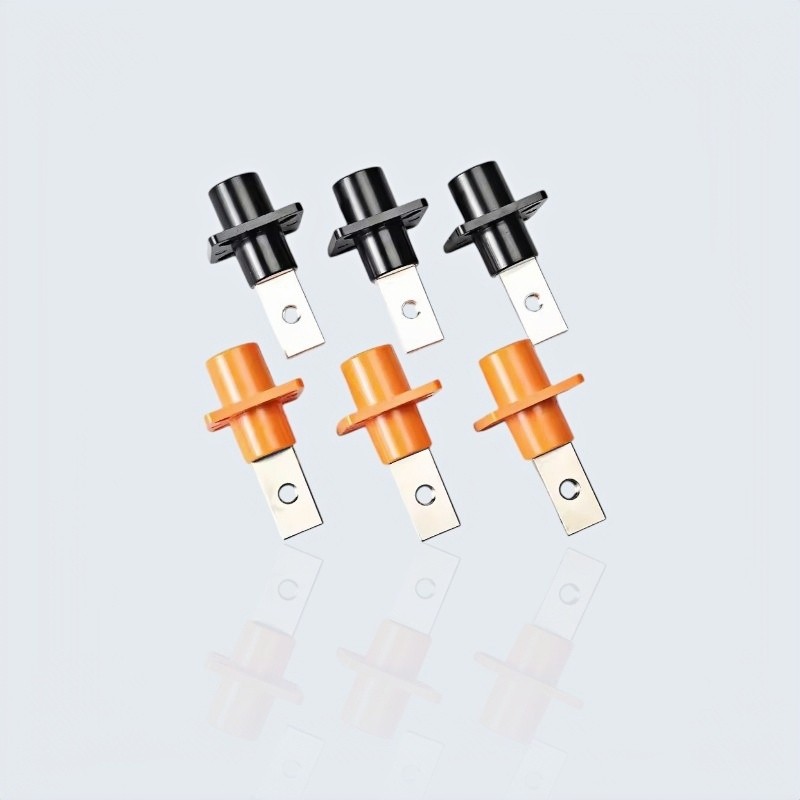

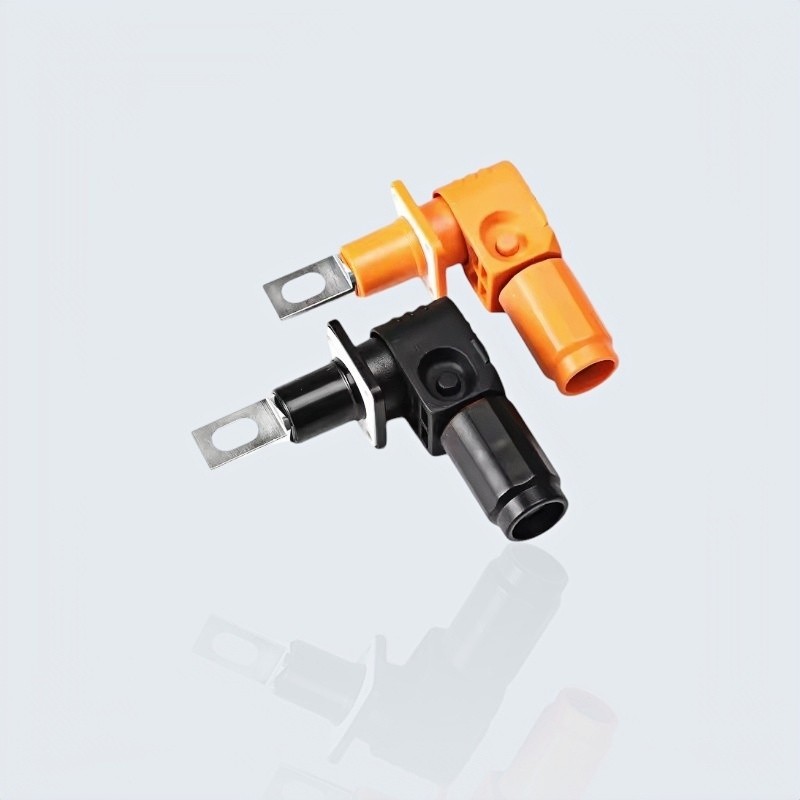

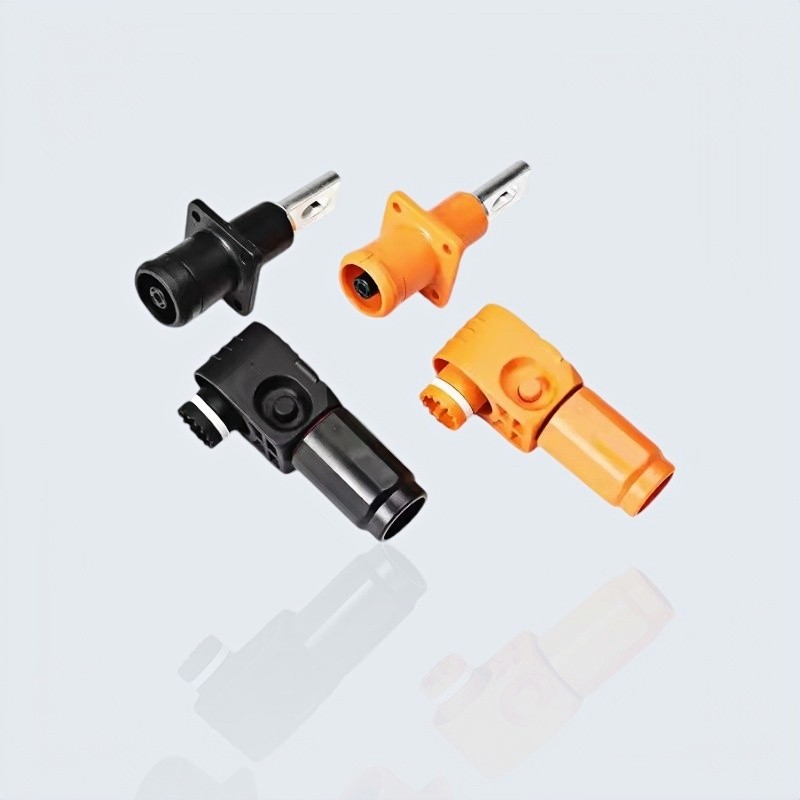

IP67 High Voltage Column Copper Terminal Lithium Battery Custom Connector
|
Electrical Properties |
|
|
Rated Current |
100A |
|
Rated Voltage |
TUV DC1000V |
| Wiring Range |
16mm² |
|
Termination |
Crimping Terminal |
|
Key Position |
From 30° to 120° |
|
|
|
|
Mechanical Properties |
|
|
Withstanding Voltage |
AC3000V |
|
Insertion and Extraction Force |
6N~12N |
|
Insulation Resistance |
2GΩ MIN (Indoor Temp.) ~ 100MΩ MIN (High Temp. up to 125°C) |
|
Contact Resistance |
0.5MΩ Max |
|
Orientation |
90° Angle (Right) / Straight |
|
Material |
PA66, 25% Reinforced Material, Copper |
|
Connector Type |
Battery Storage Connector Amphenol Surlok Plus Style |
|
|
|
|
Environmental Endurance |
|
|
Temperature Range |
'- 40°C ~ '＋125°C |
|
Fire Resistance Rating |
UL94-V0 |
|
Waterproof Rating |
IP65 |
|
Temperature Rise |
45K Max |
|
Salt Spray Test |
144Hrs Approved |
Energy Storage Solutions for Various Industries:
- Residential and Commercial Applications
- Energy Storage Cabinets
- Energy Storage Substations
- Mobile Energy Storage Vehicles
- Photovoltaic Power Plants
- Transportation Systems
