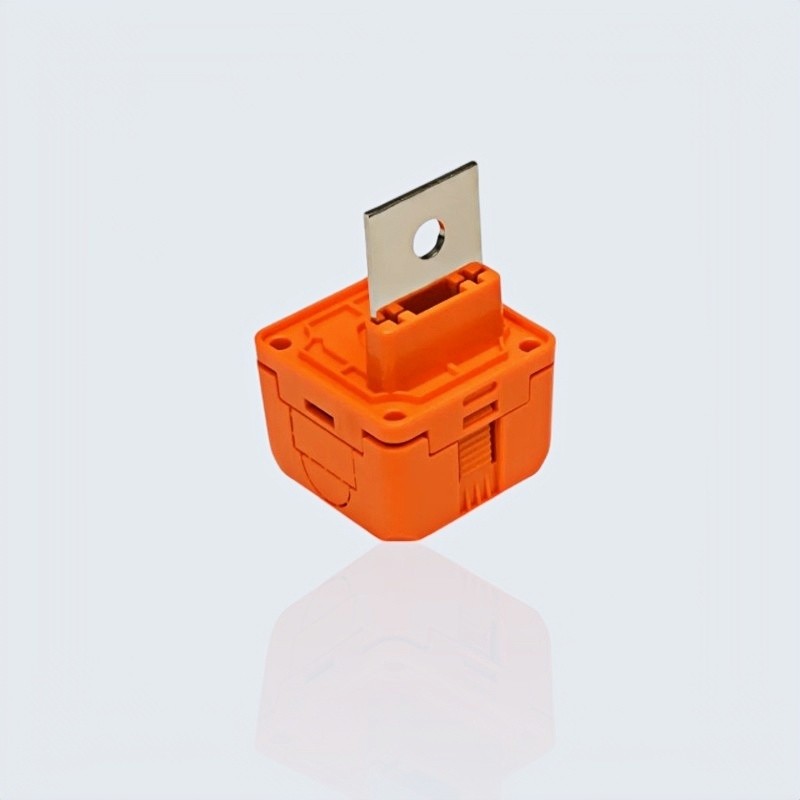

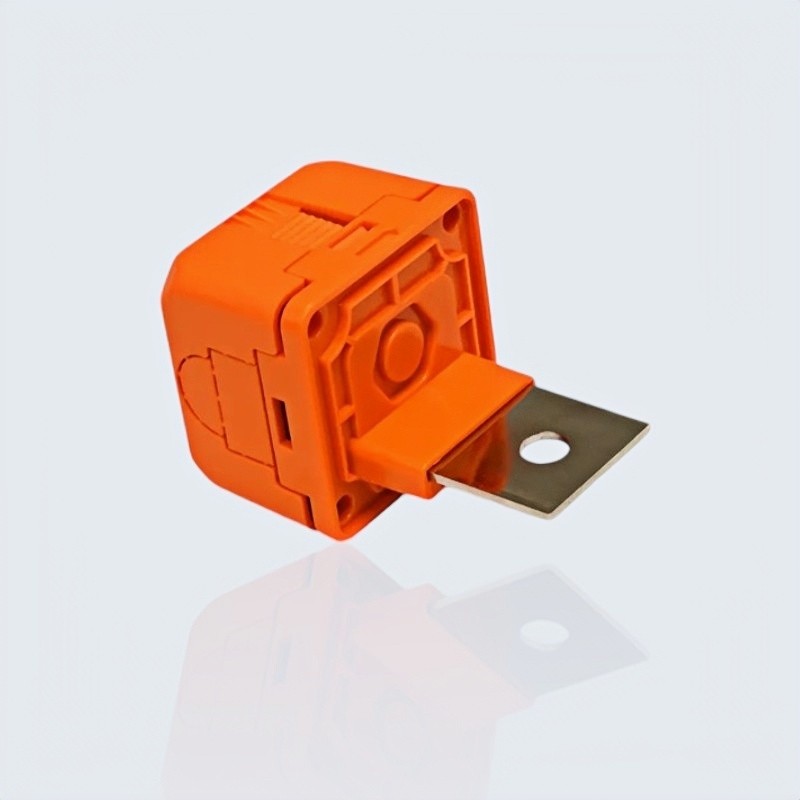

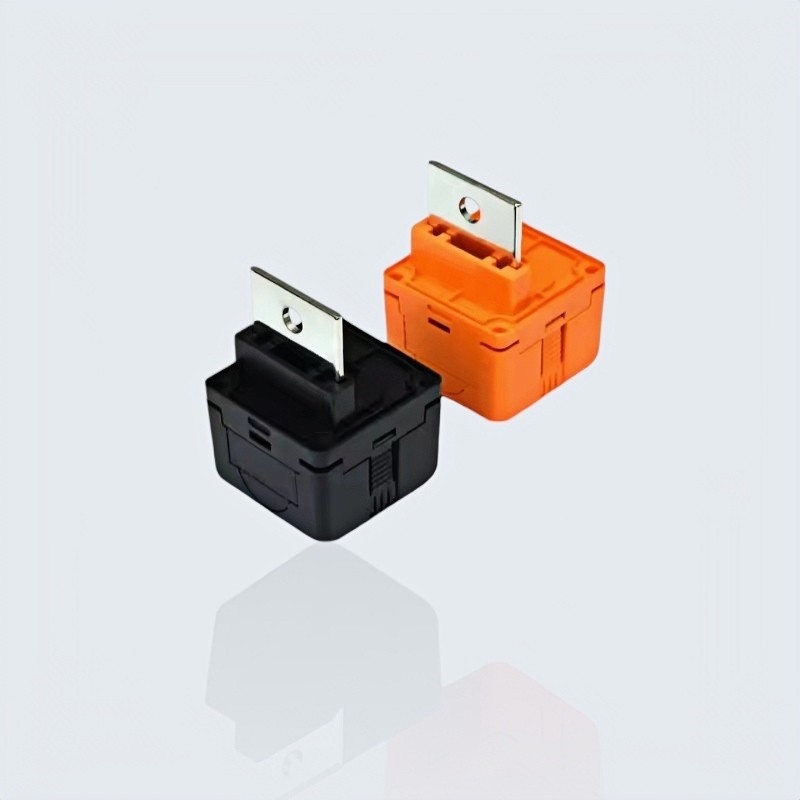

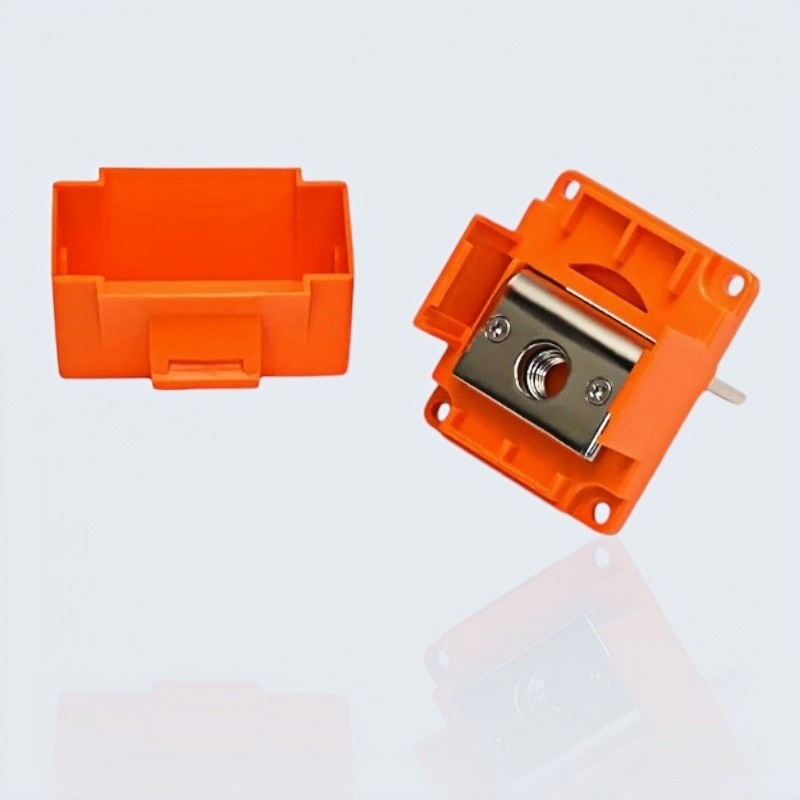

Copper Terminal Bolt Busbar Wiring Battery Energy Storage Cable Connectors
|
Electrical Properties |
|
| Rated Current |
350A, 250A, 150A |
|
Rated Voltage |
DC1500V |
|
Insulation Resistance |
2GΩ MIN (Indoor Temp.) ~ 100MΩ MIN (High Temp. up to 125°C) |
|
Withstanding Voltage |
AC4260V |
|
Contact Resistance |
0.5MΩ Max |
| Compatible with Busbar | 15*3mm |
|
Material |
PA, 25% Reinforced Material, Copper |
|
Wiring Range |
16mm², 25mm², 35mm², 50mm², 70mm², 95mm² |
|
|
|
|
Mechanical Properties |
|
|
Torque |
5N.M MAX |
|
Temperature Range |
'- 40°C ~ '＋100°C |
|
Fire Resistance Rating |
UL94-V0 |
|
Waterproof Rating |
IP50, IP65 |
|
Temperature Rise |
45K Max |
|
Salt Spray Test |
48Hrs Approved |
Energy Storage Solutions for Various Industries:
- Residential and Commercial Applications
- Energy Storage Cabinets
- Energy Storage Substations
- Mobile Energy Storage Vehicles
- Photovoltaic Power Plants
- Transportation Systems
